| 夾緊力kN |
| 手動扭矩Nm |
標準型 |
| 3610V |
3630V |
| 14 |
2.9 |
2.9 |
| 27 |
7.8 |
7.8 |
| 41 |
9.9 |
9.9 |
| 54 |
13.4 |
13.4 |
| 68 |
17.0 |
17.0 |
| 81 |
19.7 |
19.7 |
| 95 |
24.6 |
24.6 |
| 108 |
28.3 |
28.3 |
| 夾緊力kN |
| 液壓MPa |
液壓型 |
| 3610H |
3630H |
| 3 |
7 |
7 |
| 6 |
14 |
14 |
| 8 |
21 |
21 |
| 11 |
28 |
28 |
| 14 |
35 |
35 |
| 17 |
42 |
42 |
| 19 |
49 |
49 |
| 22 |
56 |
56 |
| 液壓排量CC |
19 |
19 |
注：夾緊力為參考值
| 夾緊力kN |
| 氣壓Bar |
氣動型 |
| 3610A |
3630A |
| 0.7 |
1.4 |
1.4 |
| 1.4 |
3.7 |
3.7 |
| 2.1 |
5.7 |
5.7 |
| 2.8 |
7.9 |
7.9 |
| 3.5 |
9.8 |
9.8 |
| 4.1 |
12.1 |
12.1 |
| 4.8 |
14.4 |
14.4 |
| 5.5 |
16.9 |
16.9 |
| 6.2 |
19.4 |
19.4 |
| 6.9 |
22.2 |
22.2 |
|
|
| 參數表 mm(in) |
|
標準型 |
液壓型 |
氣動型 |
| 3610V |
3630V |
3610H |
3630H |
3610A |
3630A |
| A |
80.95 |
80.95 |
80.95 |
80.95 |
80.95 |
80.95 |
| B |
152.40 |
152.40 |
152.40 |
152.40 |
152.40 |
152.40 |
| C |
382.52 |
328.68 |
382.52 |
328.68 |
382.52 |
328.68 |
| D |
69.85 |
69.85 |
69.85 |
69.85 |
69.85 |
69.85 |
| E |
17.48 |
17.48 |
17.48 |
17.48 |
17.48 |
17.48 |
| F |
37.72 |
37.72 |
37.72 |
37.72 |
37.72 |
37.72 |
| G |
69.85 |
69.85 |
69.85 |
69.85 |
69.85 |
69.85 |
| H |
44.07 |
44.07 |
44.07 |
44.07 |
44.07 |
44.07 |
| J |
18.42 |
18.42 |
18.42 |
18.42 |
18.42 |
18.42 |
| K |
114.30 |
114.30 |
114.30 |
114.30 |
114.30 |
114.30 |
| L |
57.15 |
57.15 |
57.15 |
57.15 |
57.15 |
57.15 |
| M |
127.00 |
127.00 |
127.00 |
127.00 |
127.00 |
127.00 |
| N |
23.80 |
23.80 |
23.80 |
23.80 |
23.80 |
23.80 |
| O |
98.43 |
98.43 |
98.43 |
98.43 |
98.43 |
98.43 |
| P |
(1/2-13) |
(1/2-13) |
(1/2-13) |
(1/2-13) |
(1/2-13) |
(1/2-13) |
| Q |
50.80 |
50.80 |
50.80 |
50.80 |
50.80 |
50.80 |
| R |
107.95 |
107.95 |
107.95 |
107.95 |
107.95 |
107.95 |
| S |
76.20 |
76.20 |
76.20 |
76.20 |
76.20 |
76.20 |
| T |
35.03 |
35.03 |
35.03 |
35.03 |
35.03 |
35.03 |
| U |
16.00 |
16.00 |
16.00 |
16.00 |
16.00 |
16.00 |
| V |
49.28 |
49.28 |
49.28 |
49.28 |
49.28 |
49.28 |
| W |
(3/4) |
(3/4) |
(3/4) |
(3/4) |
(3/4) |
(3/4) |
| X |
143.26 |
143.26 |
143.26 |
143.26 |
143.26 |
143.26 |
| Y |
16.00 |
16.00 |
16.00 |
16.00 |
16.00 |
16.00 |
| Z |
152.40 |
152.40 |
152.40 |
152.40 |
152.40 |
152.40 |

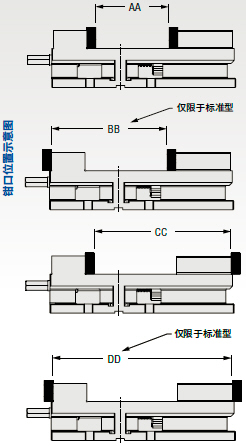

| AA |
152.40 |
101.60 |
152.40 |
101.60 |
152.40 |
101.60 |
| BB |
241.30 |
190.50 |
- |
- |
- |
- |
| CC |
285.75 |
234.95 |
285.75 |
234.95 |
285.75 |
234.95 |
| DD |
374.70 |
323.90 |
- |
- |
- |
- |
| EE |
- |
- |
61.21 |
61.21 |
- |
- |
| FF |
- |
- |
49.28 |
49.28 |
- |
- |
| GG |
- |
- |
85.73 |
85.73 |
- |
- |
| HH |
- |
- |
- |
- |
183.39 |
183.39 |
| JJ |
– |
– |
– |
– |
(2.100) |
(2.100) |
| KK |
– |
– |
– |
– |
(1.030) |
(1.030) |
| LL |
– |
– |
– |
– |
(5.000) |
(5.000) |
| MM |
(2.500) |
(2.500) |
(2.500) |
(2.500) |
(2.500) |
(2.500) |
| NN |
(0.344) |
(0.344) |
(0.344) |
(0.344) |
(0.344) |
(0.344) |
| OO |
(1/2) |
(1/2) |
(1/2) |
(1/2) |
(1/2) |
(1/2) |
| PP |
(0.671) |
(0.671) |
(0.671) |
(0.671) |
(0.671) |
(0.671) |
| QQ |
(0.625) |
(0.625) |
(0.625) |
(0.625) |
(0.625) |
(0.625) |
| RR |
16MM |
16MM |
16MM |
16MM |
16MM |
16MM |
| SS |
(4.000) |
(4.000) |
(4.000) |
(4.000) |
(4.000) |
(4.000) |
| TT |
(6.000) |
(6.000) |
(6.000) |
(6.000) |
(6.000) |
(6.000) |
| UU |
100MM |
100MM |
100MM |
100MM |
100MM |
100MM |
| 重量kg |
32 |
29 |
34 |
32 |
34 |
32 |
|
